Long Range COFDM Wireless HD Video Transmitter for Vehicle Outdoor

Brand Name : Ding Shen

Model Number : DS-HDT20W

Place of Origin : Guangdong,china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 220*140*66mm

Modulate : COFDM

Frequency : 300-900Mhz or other frequency customized

Video input : HDMI/SDI; CVBS

Video resolution : 1920*1080P/I@60fps; 1280*720P/I@60fps

Product name : Broadcast Hd Sdi UAV Long Range Distance Video Transmitt

Video coding : MPEG-2/H.264/H265

Contact Now

DS-HDT20W is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. It works well in fast-moving transmission.

Transmitter parameter:

Modulate	COFDM
Working voltage	DC12V
Working current	≤6A@DC12V
RF bandwidth	2/4/6/8MHz (adjustable)
Frequency	300-900Mhz or other frequency customized
Output power	10-20W adjustable
Video input	HDM-I/SDI; CVBS
Data input (option)	RS232/TTL, up to 115200bps
Video resolution	19201080P/I@60fps; 1280720P/I@60fps
Video coding	MPEG-2/H.264/H265
Video rate	512Kbps-16Mbps (adjustable)
Encryption	AES 128 bits
AV input	1Vp-p, 75Ω. Left and right channel
Video system	PAL/NTSC
Power flatness	Full band ≤1.5dB
CNR	≥25dBc@48dBm
Second harmonic	≥60dBc
CBER	<2.0E-4
VBER	<1.0E-7
MER	32dB
Carrier	2k 4k 8k
Constellation	QPSK,16QAM,64QAM (option)
FEC	1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval	1/32, 1/16, 1/8, 1/4 (option)
Working Temperature	-25°C~55°C
Dimension	22014066mm
Weight	2.5kg

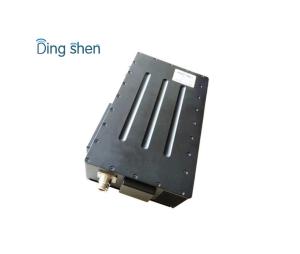

Long Range COFDM Wireless HD Video Transmitter for Vehicle Outdoor
